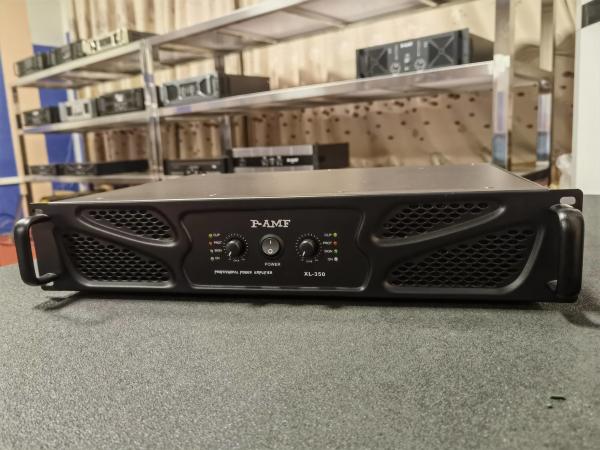

XL350 2 Channel Power Amplifier with Balanced/Unbalanced Input Impedance
Description
Amplification: The primary function of a 2-channel power amplifier is to amplify audio signals from various sources, such as a preamplifier, mixer, or audio interface. Each channel of the amplifier takes a low-level input signal and increases its power level to drive speakers or other audio devices.
Power Output: A 2-channel power amplifier provides power to two separate sets of speakers or audio zones. The power output of each channel is typically specified in watts, indicating the maximum power that the amplifier can deliver per channel. The power output determines the amplifier's ability to drive speakers and deliver sound at a certain volume level.
Quick Detail
| Model | XL-350 |
TA 1KHz THD≤1%
Stereo Power | 8 OHMS | 2×350W |
| 4 OHMS | 2×520W |
TA 1KHz THD≤1%
Bridge Mono Power | 8 OHMS | 1000W |
Frequency Response | 10Hz-50KHz-1.5dB |
Noise A-weighting | ＞100dB |
Damping Coefficient | ＞200 |
Maximum Input Level | 21dBV/9V |
Slew Rate | ≥35V/μS |
Channel Separation | ＞70dB |
Input Sensitivity | 0.77V/1V/1.4V |
Input Impedance(Equilibrium/Disequilibrium) | 20K OHMS/10K OHMS |
Output Type | Class A |
Power Dissipation (half-power,8 OHMS) | ＜430W |
Power Source | 220V-240V/50Hz |
Cooling |
Two variable speed fans |
Protection |
DC / short circuit / over voltage over current protection / soft start / power amplifier tube overheat protection / distortion limiting |
Display |
Power light (green), Protection light (red), Overload light (yellow), Signal light (green) |
Input |
Balanced input |
Output |
Professioanl binding post outputs |
Panel Control |
Left and right channel volume control, power switch control |
Backplane Control | Parallel / bridge mono switch, 0.77v/1v/1.4v sensitivity switch |
Dimension (mm) | 482×339.5×88(mm) |
Advantage Of Factory
Our company was established in 1998, specializing in the development, production, and sales of audio electronic products for over 20 years. Complete equipment, advanced production technology, multiple high-efficiency assembly lines, semi-automatic production, ensuring quality and quantity. With strong technology and advanced management experience, perfect after-sales service (for example: after-sales troubleshooting, maintenance consulting, spare parts replacement, etc.) based on the forefront of the audio industry, dedicated to new and old customers for a better tomorrow.
